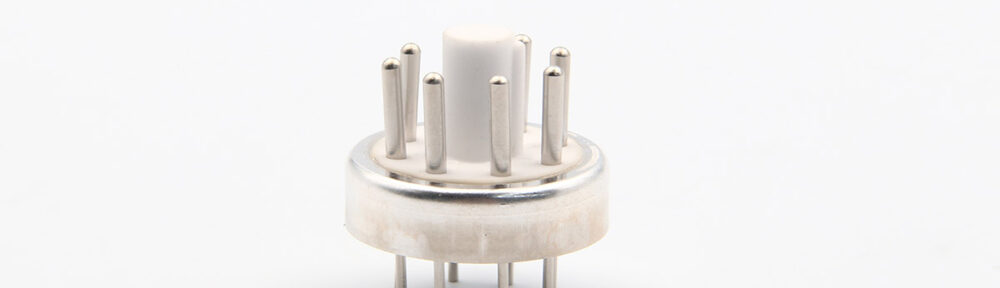

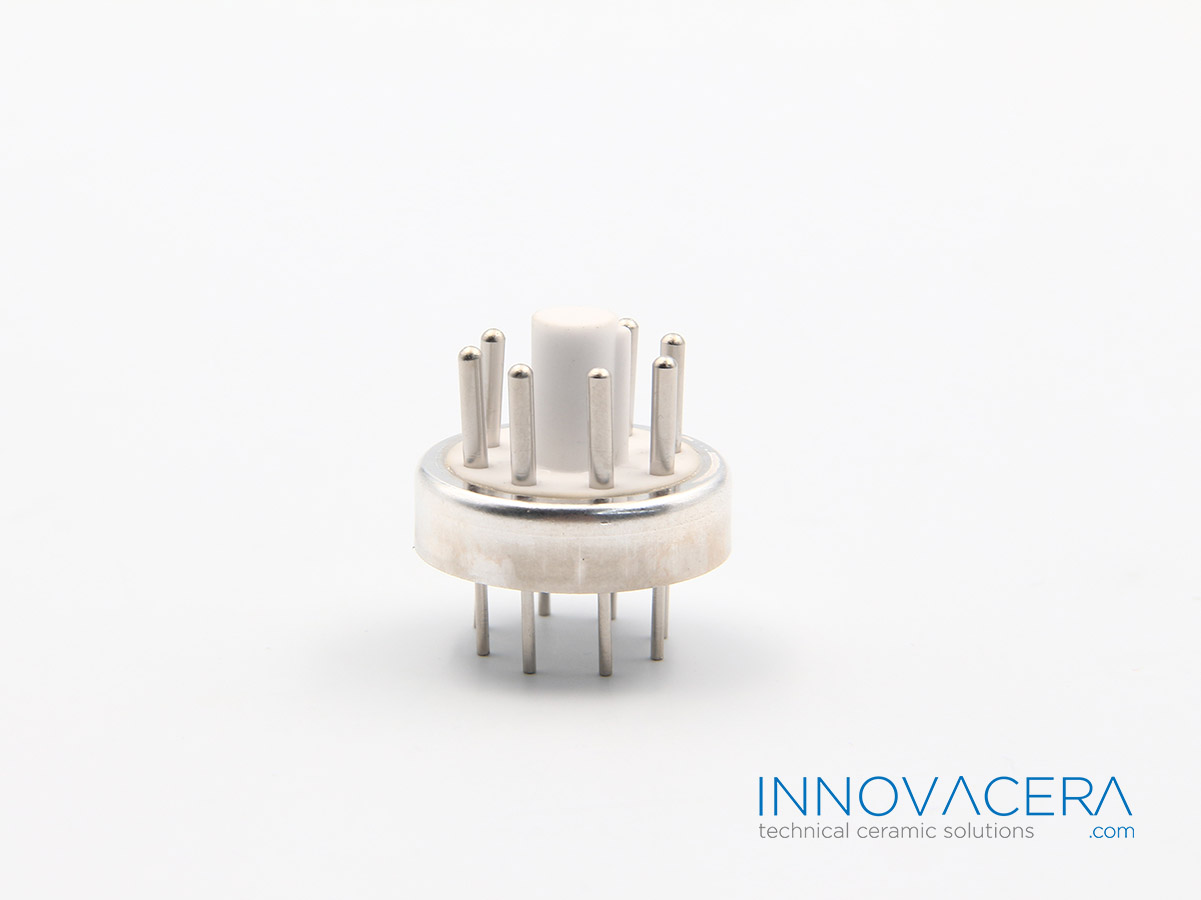

Multiple Connectors

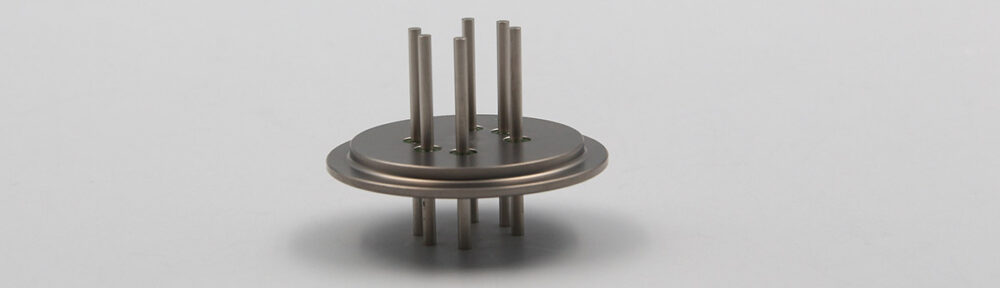

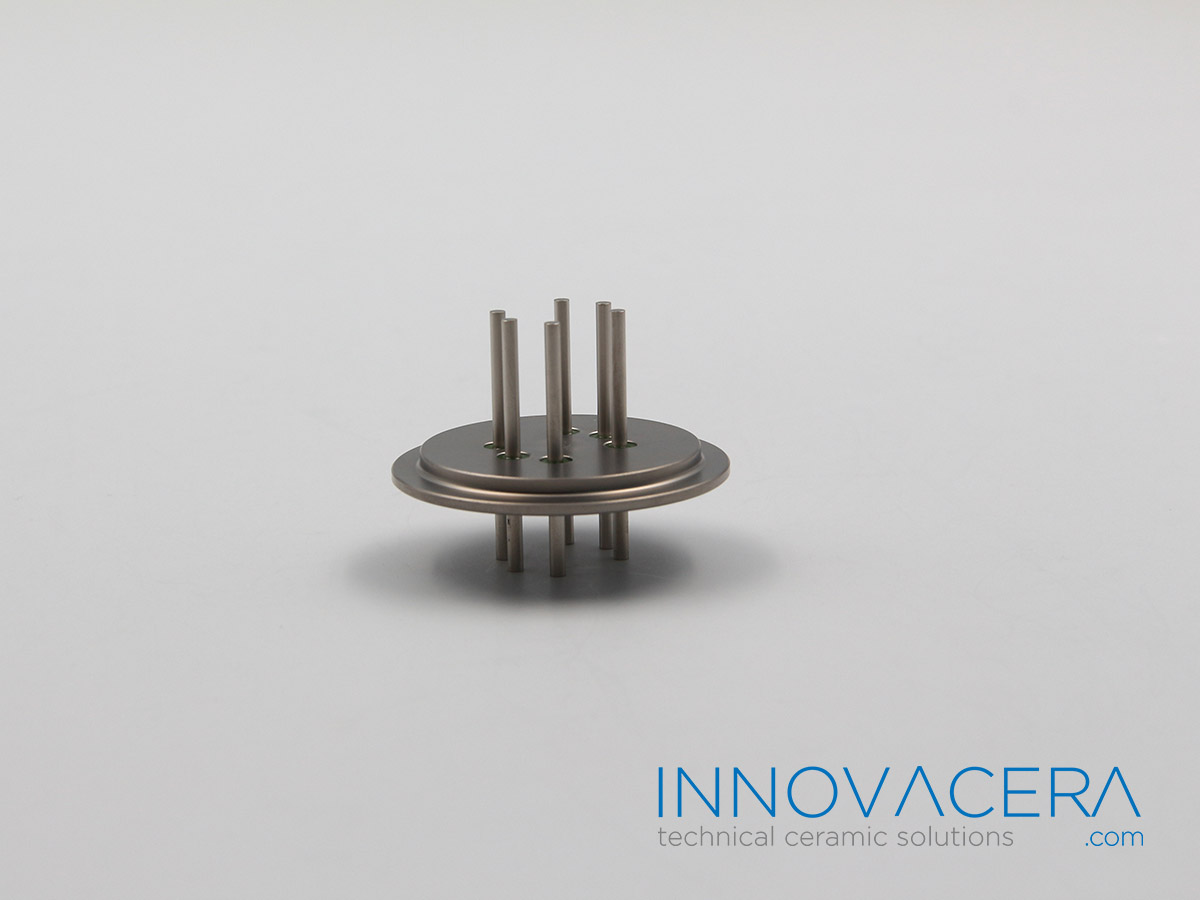

Ceramic-to-Metal and Glass-Ceramic-to-Metal multipin connectors are feedthroughs with two or more conductors. They are made for accepting plugs on the air side, and some feedthroughs allow for plugs on the vacuum side.
Hermetic multipin feedthroughs are used primarily to provide instrumentation signals, voltage and/or current into a high-vacuum or ultra-high vacuum environment, with an in-line connection to outside instrumentation.
- Semiconductor processing equipment

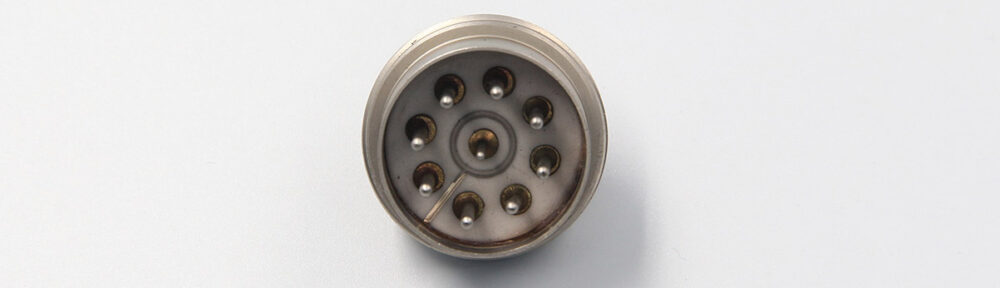

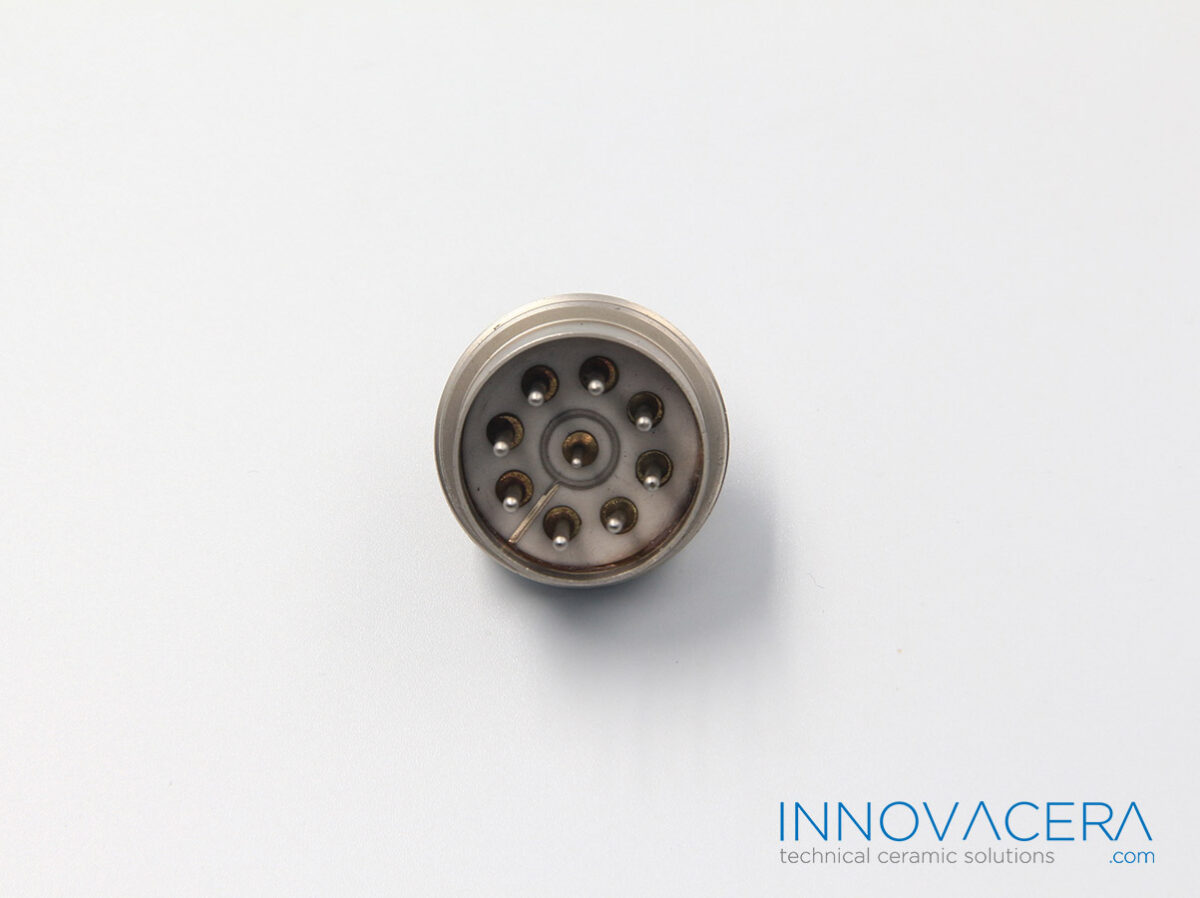

- Analytical test and measurement equipment

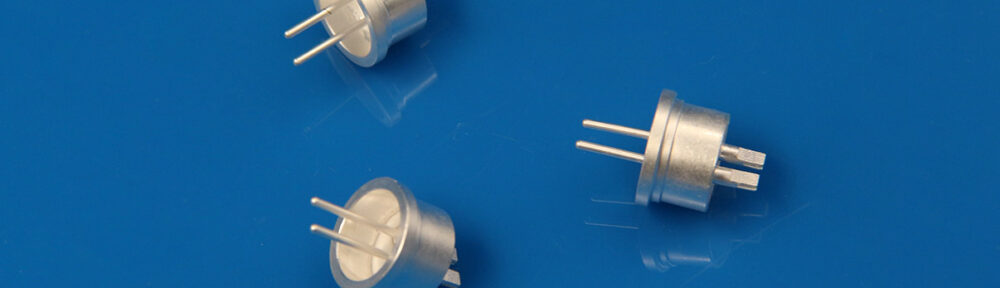

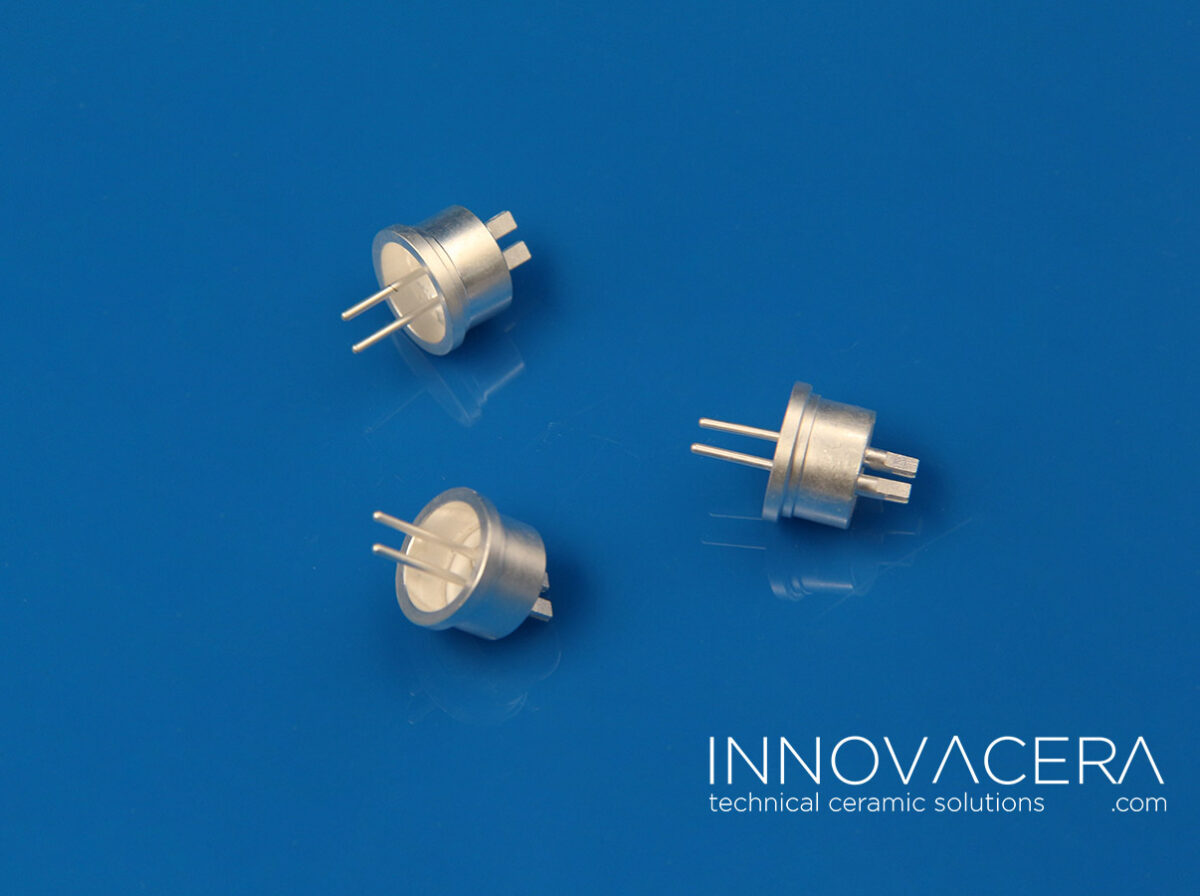

- Pressure transducers
- Power generation (measurement and control technology)
- Particle accelerators
- Furnaces
- Energy research
| Ceramic Insulator | Metal | Solder |
| 94%-99% Al2O3 | lKovar | Copper |
| Stainless steel | Gold-copper | |
| Nickel-iron alloy | lSilver-copper | |
| Cupro-nickel alloy | ||
| Molybdenum |
- Proven reliability and performance
- High voltage >12kV DC
- High current 40Amp per pin
- Operate in Ultra High Vacuum (UHV) environment
- Hermetic - vacuum leak testing to 1x10-10 mbar l/s He
- Operating temperatures ranging from cryogenic -250°C to +450°C
- RoHS compliant
- Custom designs to suit your application
