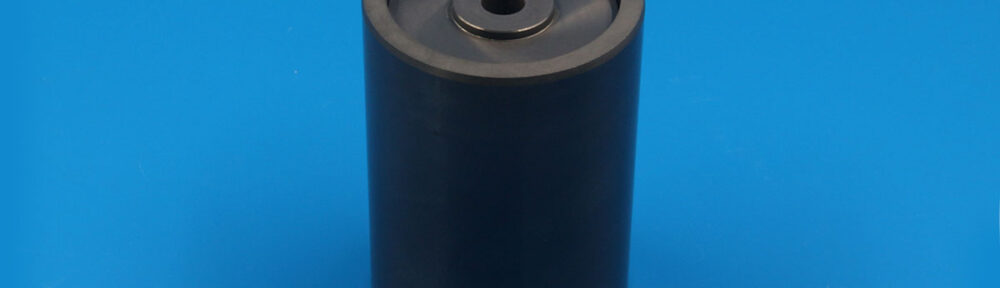

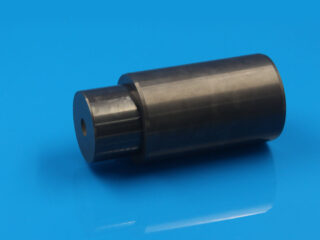

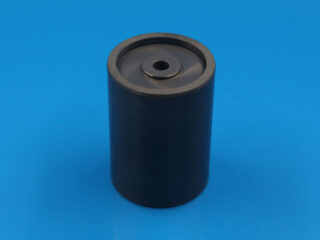

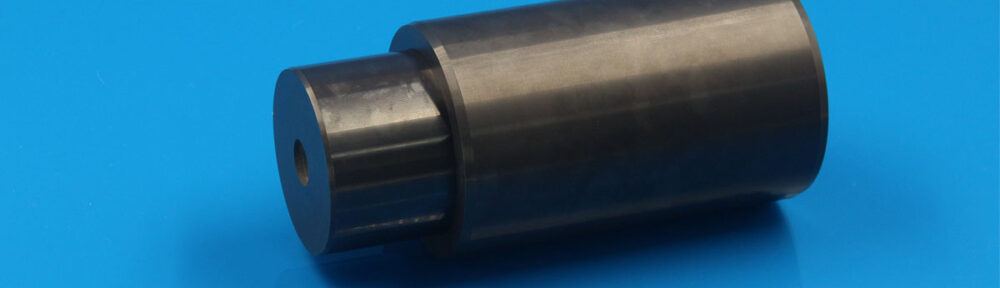

Ceramic Piston and Plunger

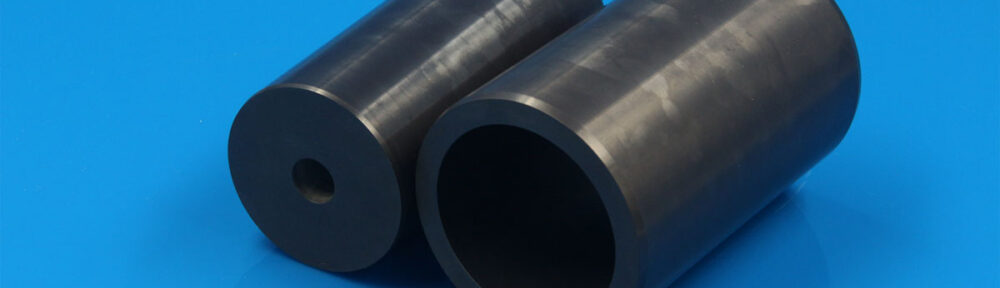

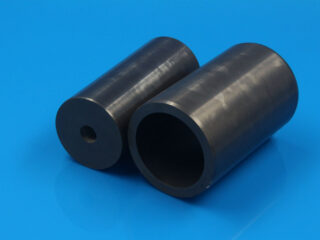

Silicon Nitride Ceramic Piston and Plunger

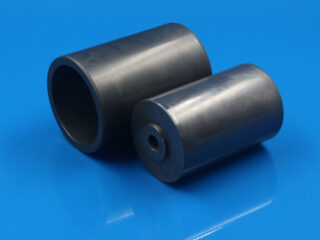

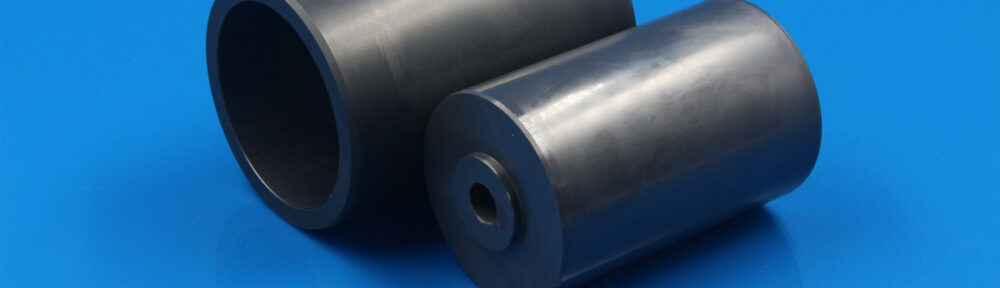

Silicon Carbide Ceramic Piston and Plunger
Ceramic Piston and Plunger
Ceramic Piston and Plunger
Ceramic Piston and Plunger

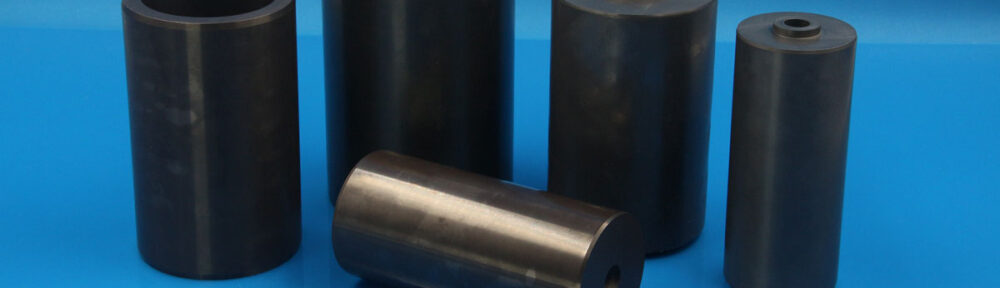

Ceramic Pistons and Plungers

Innovacera supplies ceramic pistons and plungers with various materials, such as alumina, zirconia, silicon nitride, silicon carbide, and so on.

The variety of silicon nitride and silicon carbide pistons and plungers have evolved in response to growing interest in their application in manufacturing epoxy resin components, mechanical equipment, high-pressure pumps, and other engineering applications.



Quote/Order

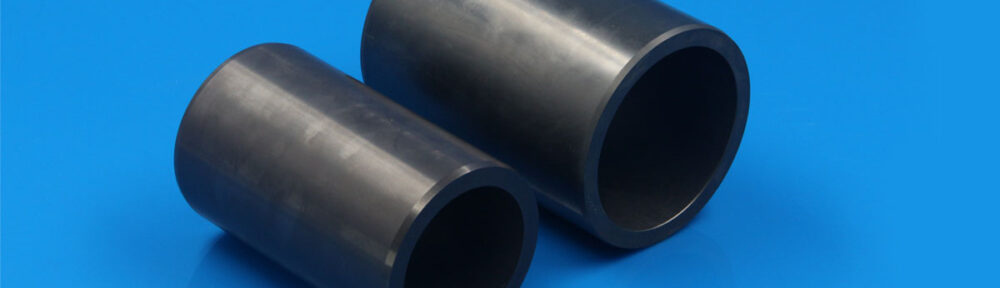

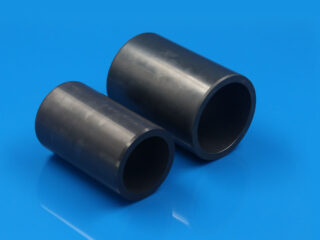

To produce the epoxy resin components, the casting machine requests wear resistance, corrosion resistance, and chemical inertness material such as piston and plunger. Innovacera recommends you choose silicon nitride and silicon carbide material as ceramic material to make pistons and plungers. Silicon nitride (Si3N4 ceramic) is black or dark grey color, it is a non-oxide structural ceramic material and can be polished to give a smooth and strikingly reflective surface appearance. Its main properties are its high thermal shock and chemical inertness, its main applications include vacuum casting machines, shot dosing equipment, and so on. Silicon nitride and silicon carbide ceramic piston and plungers features: High wear resistance Excellent surface smoothness High Thermal Shock resistance No Chemical decomposition in heating to over 1000 degrees Celsius. Here are some Silicon nitride and silicon carbide ceramic pistons and plungers Innovacera made:
Item Product Name Size(mm)
1 Piston φ90.6*φ17*149
Sleeve φ110*φ90.6*152
2 Piston φ90.6*φ17*40
Sleeve φ110*φ90.6*152
3 Piston φ70*φ17.5*148
Sleeve φ90*φ70*152
4 Piston φ60.6*φ13*148
Sleeve φ80*φ60.6*152
5 Piston φ60.6*φ13*40
Sleeve φ80*φ60.6*152
