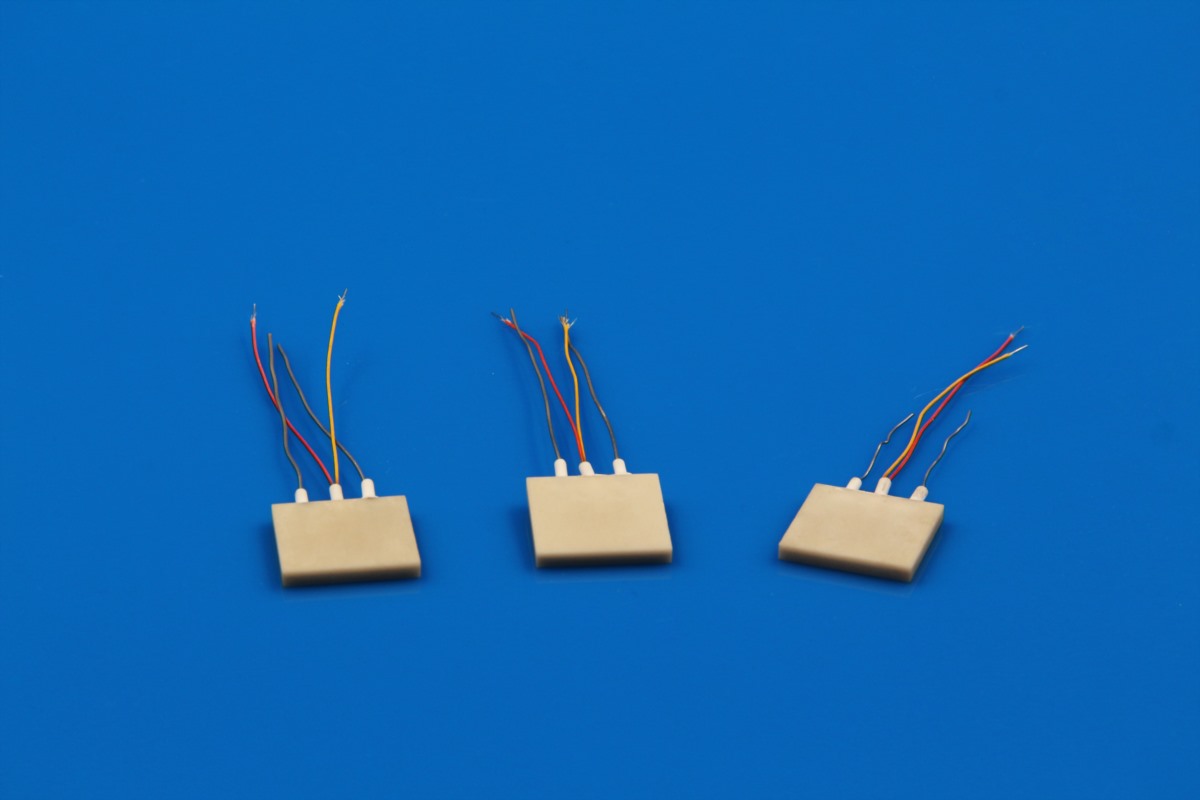

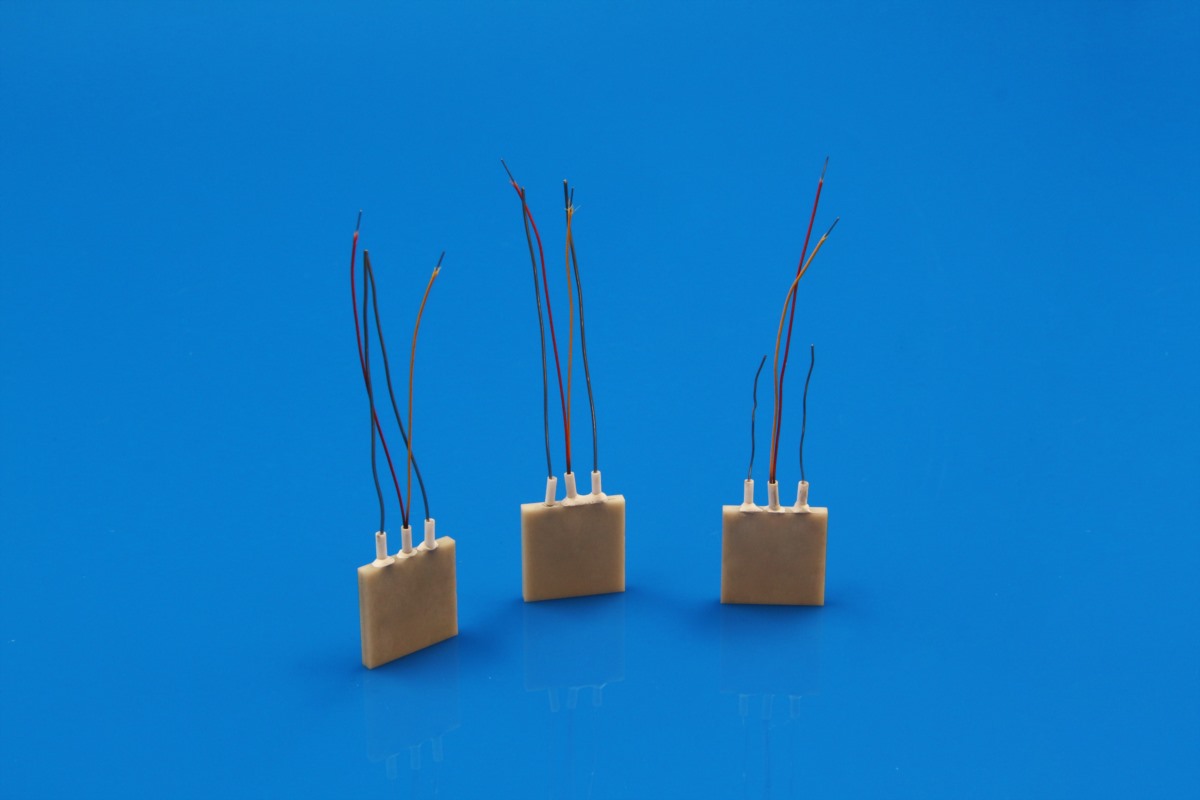

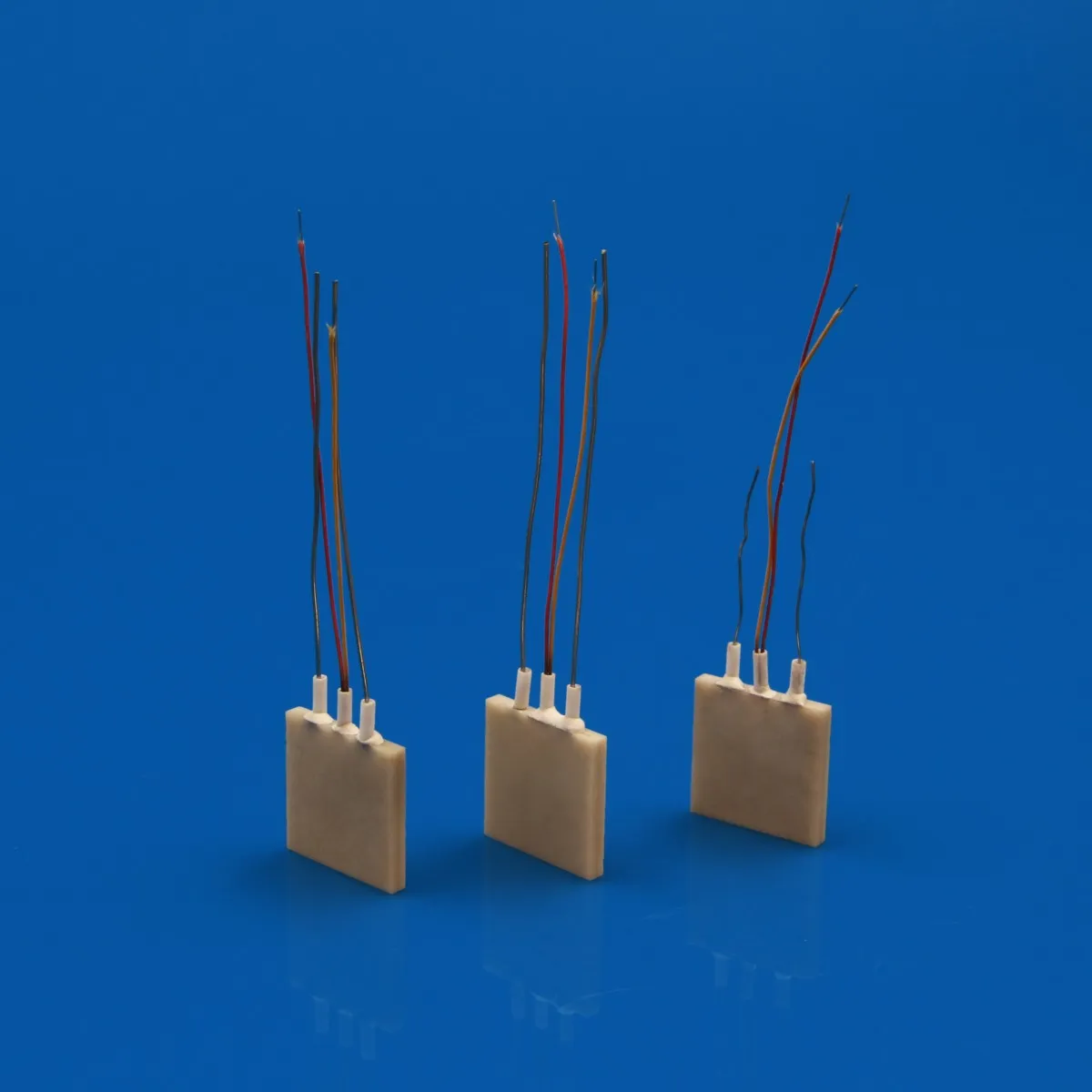

This aluminum nitride ceramic heating element launched by INNOVACERA can heat ultra-fast through the use of ceramics (AIN), and provides a service life that can meet the requirements of various use environments. Being an advanced value-added product helps add more value to your products/systems.
Product Features:
| Thermal Properties | Thermal Conductivity | 150 W/mK |
|---|---|---|
| Thermal Expansion Coefficient | 4.5 ppm/℃ | |
| Physical Properties | Density | 3.2 g/cm³ |
| Hardness | 1050 Hv@500g | |
| Flexure Strength | >250 MPa | |
| Electrical Characteristics | Voltage | 12-240V |
| Leakage | ||
| Capacitivity | 8.9 | |
| Insulation Voltage | 15 KV/mm |
Characteristics:
The heater can have a built-in K-type thermocouple, so it has good temperature sensing characteristics, improves its responsiveness to rapid heating and cooling, and can be used safely.
Fast Heating and Cooling
The aluminum nitride substrate with high thermal conductivity can be used to chieve rapid heating and cooling, and the thermal expansion rate can be used according to the material properties to design under high power density, so it can also be used for rapid heating and cooling (both 150℃/sec) temperature cycle.
Excellent Electrical Performance
Excellent insulation and voltage resistance at high temperatures.
Specification:
| Dimensions (L×T) [mm] | Voltage [V] | Wattage [W] | Power Density [W/cm²] | Resistance Value [Ω] |
|---|---|---|---|---|
| 12.0 × 2.5 | 100-200 | 45/100 | 31/69 | 222/400 |
| 19 × 2.5 | 110-200 | 155 ±10% | - | 78 |
| 20.0 × 2.5 | 100-200 | 100 | 25 | 100/400 |
| 25.0 × 2.5 | 100-200 | 150-600 | 24-96 | 67 |
| 50.0 × 2.5 | 100-200 | 400-1600 | 16-64 | 25 |
| Customization | - | - | - | - |
Application
- Semiconductor manufacturing industry
- Automotive
- Medicals
- Packaging machines
- Railway industry
Frequently Asked Questions
What is an Aluminum Nitride Ceramic Heater? What Are Its Key Advantages?
An Aluminum Nitride (AlN) ceramic heater is an advanced industrial heating element designed for high-performance thermal applications. Its key advantages include:
– High Thermal Conductivity: With a conductivity of 150 W/mK, it ensures rapid and highly uniform heat distribution.
– Excellent Electrical Insulation: It provides high insulation voltage resistance (15 KV/mm) and stable electrical performance under high-temperature environments.
– Precise Temperature Control: Features a built-in K-type thermocouple that improves response times and thermal sensing accuracy.
In Which Industries Is the AlN Heater Applied? How Fast Does It Heat and Cool?
The AlN ceramic heater is designed for demanding industrial environments that require rapid thermal cycling:
– Target Applications: It is widely used in semiconductor manufacturing, medical and healthcare devices, automotive components, railway systems, and packaging machinery.
– Thermal Cycle Speed: Due to its excellent thermal expansion properties and high power density design, it can achieve rapid heating and cooling rates of up to 150℃/second.
