Features
• Miniature design: Suitable for small sample volumes.
• High-purity alumina (≥99%): Resistant to high temperatures and with strong chemical stability.
• Fast thermal response: Uniform heating improves the accuracy of thermal analysis.
• Multiple sizes available: Meeting different sample volumes and experimental requirements.
• Heat resistance cycle: Capable of withstanding repeated heating and cooling by TGA/DSC/DTA instruments.
Applications:
• Research on Thermal Properties of Polymer Materials, Ceramics and Composite Materials
• Thermal analysis of battery materials, powders and chemical samples
• Thermal analysis tests conducted by academic research institutions and industrial laboratories

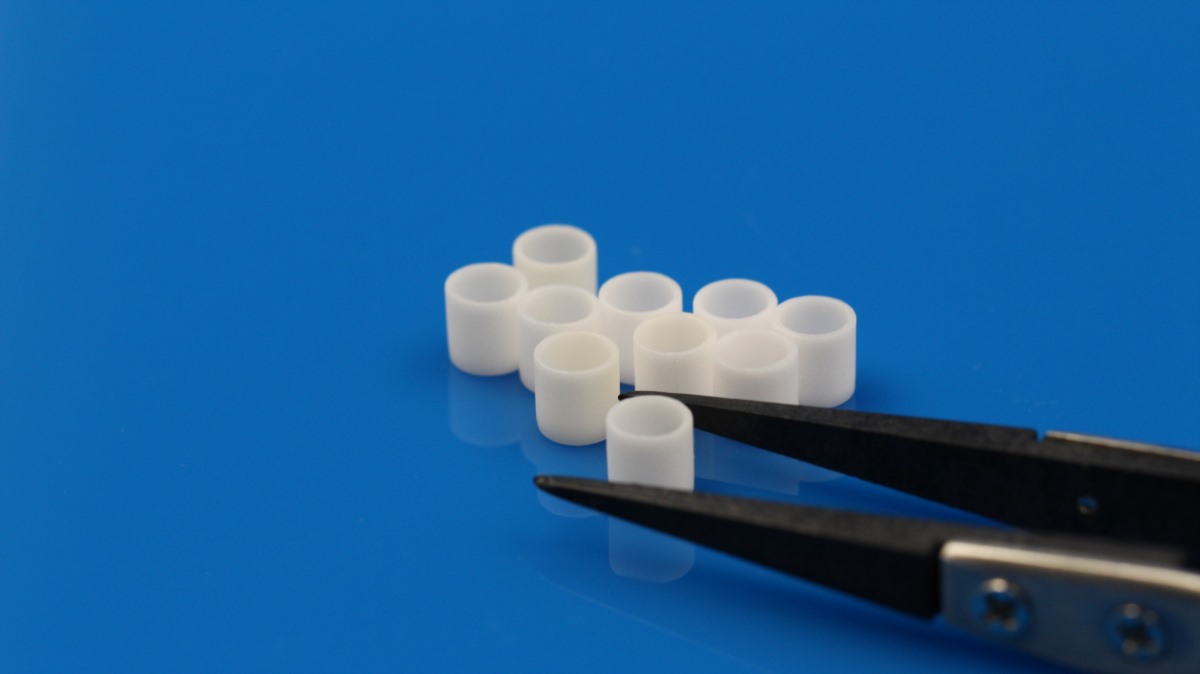

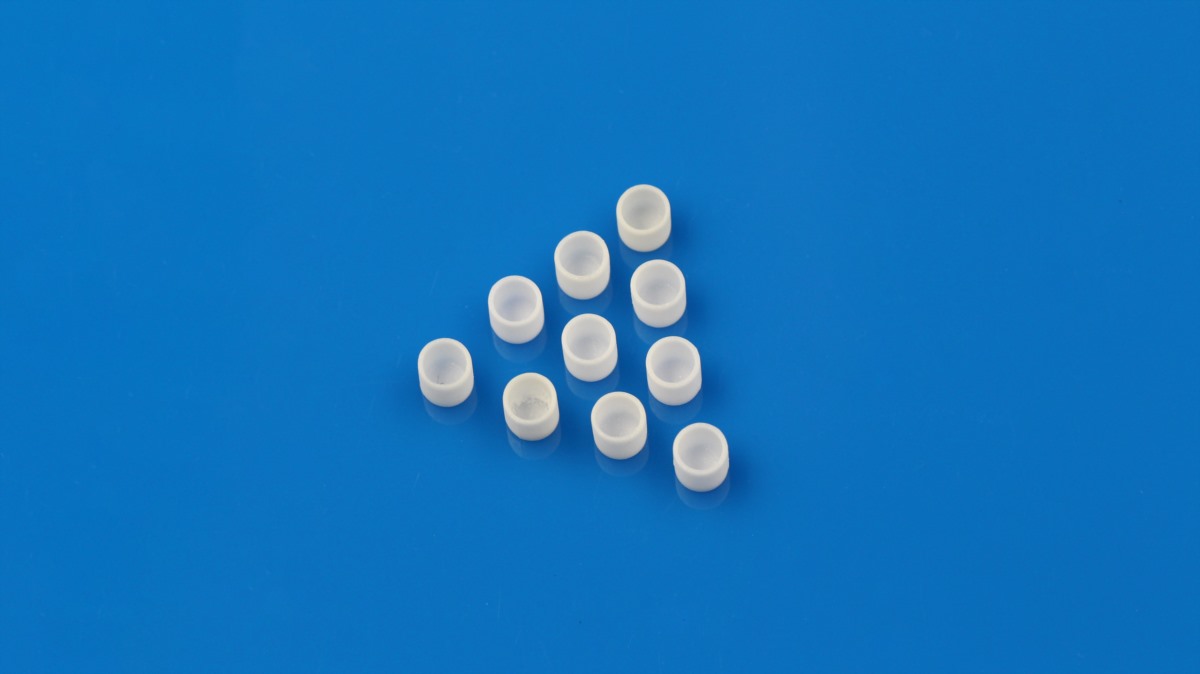

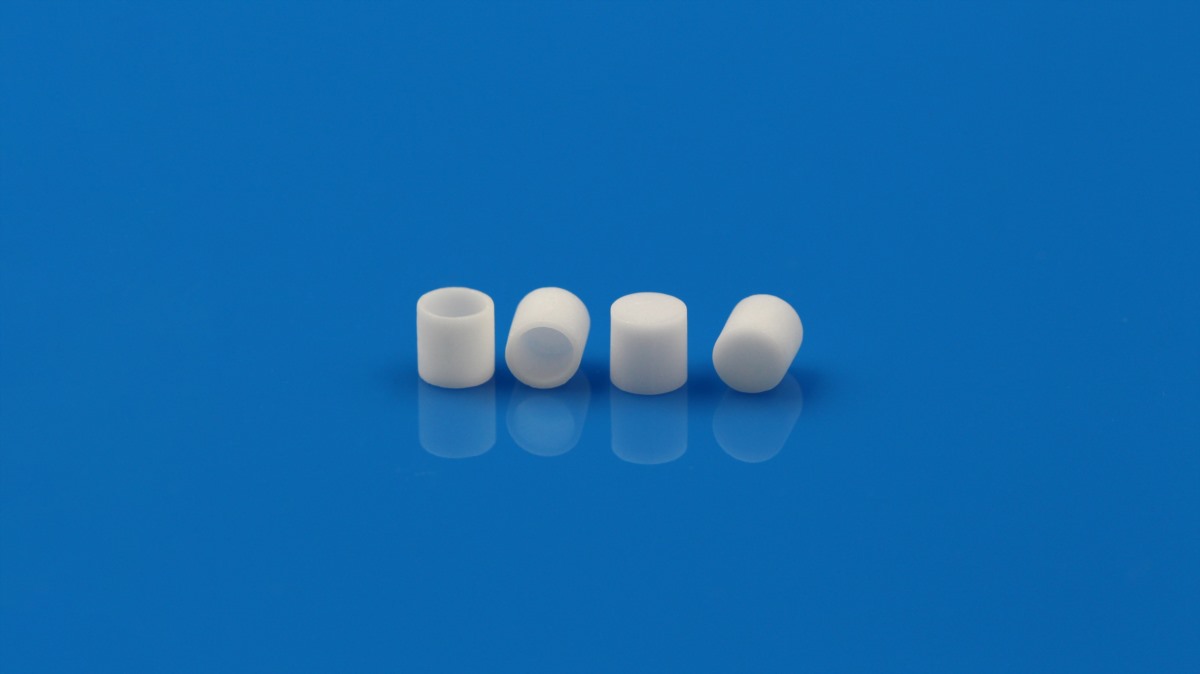

Innovacera offers various sizes of 99% alumina crucibles for thermal analysis instruments, which can accommodate different sample volumes and experimental requirements. Please feel free to contact us for more product information and customized services.
Size example:
| Diameter | Volume |
| OD2.9×ID2×4.5mm | 15μL |
| OD4×ID3×4mm | 30μL |
| OD4×ID3×5mm | 30μL |
| OD5×ID4×2.5mm | 20μL |
| OD5×ID4×3.5mm | 30μL |
| OD5.2×ID4.2×2.5mm | 25μL |
| OD6×ID5×2.5mm | 25μL |
Frequently Asked Questions
What are miniature alumina crucibles used for? Why choose 99% high-purity alumina for thermal analysis?
Miniature alumina crucibles are precision experimental tools specifically designed for thermal analysis instruments like TGA, DSC, and DTA. They are widely used in the thermal property research of polymers, ceramics, composites, and battery materials. Choosing 99% high-purity alumina ensures exceptional high-temperature resistance, a low thermal expansion coefficient, and strong chemical stability. This enables the crucible to easily withstand rapid heating and cooling cycles without cracking, ensuring the test data is highly sensitive and accurate.
How does a miniature design improve thermal analysis? What crucible sizes and volumes are available?
A miniature, lightweight crucible design significantly reduces sample consumption while perfectly fitting the sample chamber size of thermal analyzers. This structure provides a fast thermal response and uniform heating, which directly improves the accuracy and sensitivity of the thermal analysis. To meet different experimental requirements, Innovacera offers these crucibles in various precision sizes, typically ranging from 15μL to 30μL in volume, with outer diameters (OD) starting from 2.9mm up to 6mm.
