Metallized ceramic bushings and Ceramic to Metal Assemblies

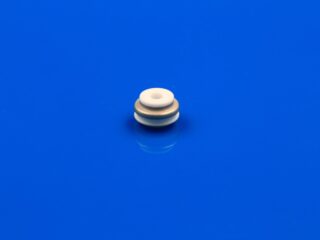

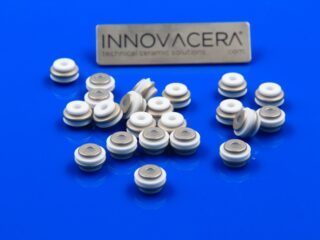

Metallized Ceramic Bushings
Metallized Ceramic Bushings

Metallized ceramic bushings and Ceramic to Metal Assemblies

Metallized ceramic bushings are widely used in the joining process of ceramics and metals. Ceramics have excellent insulation properties and can be well combined with metals through the metallization process. In addition to standard bushings, INNOVACERA is available in many custom shapes and sizes.

Quote/Order

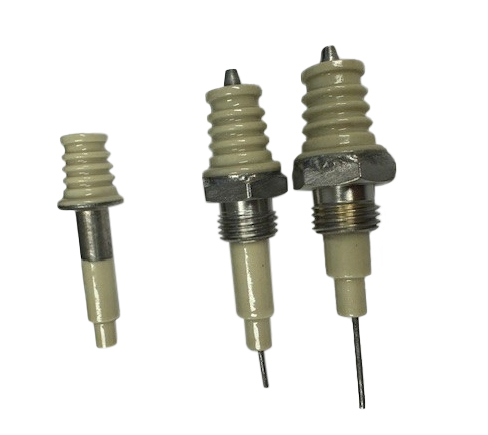

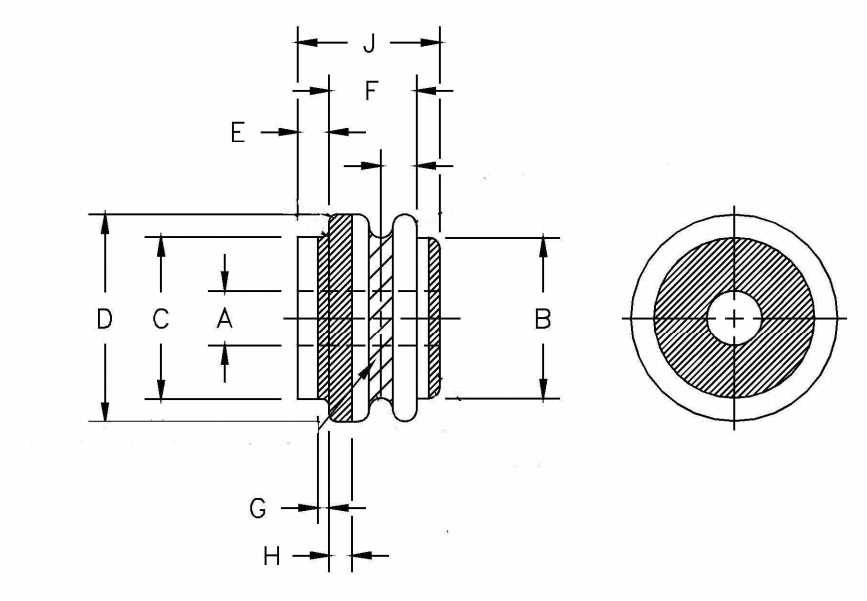

INNOVACERA also has brazing capabilities and can provide a one-stop service from ceramics to brazed components. This serivce allows us to offer finished hermetically sealed ceramic terminals for assembly. Ceramic to Metal Assemblies Designs
Part #           D           A           J
IN-CM-400        0.494        0.143        0.309
IN-CM-400-1        0.494        0.169        0.309
IN-CM-400-1M        0.494        0.228        0.309
IN-CM-400-2        0.562        0.200        0.375
IN-CM-400-2M        0.562        0.250        0.375
IN-CM-400-3        0.619        0.260        0.403
IN-CM-400-4        1.000        0.320        0.500
IN-CM-400-5        0.994        0.447        0.497
IN-CM-400-6        0.556        0.200        0.372
IN-CM-400-7         1.05         0.51        0.497
IN-CM-400-8        0.744        0.265        0.372
IN-CM-400-8-1        0.744        0.302        0.372
IN-CM-400-8-2        0.750        0.344        0.375
IN-CM-400-9        0.994        0.382        0.497
IN-CM-400-9-1        0.994        0.382        0.497
IN-CM-400-10         1.75         0.76        0.625
IN-CM-400-12        0.556        0.200        0.278
IN-CM-400-14        0.562        0.260        0.375
Ceramic to Metal Assemblies
